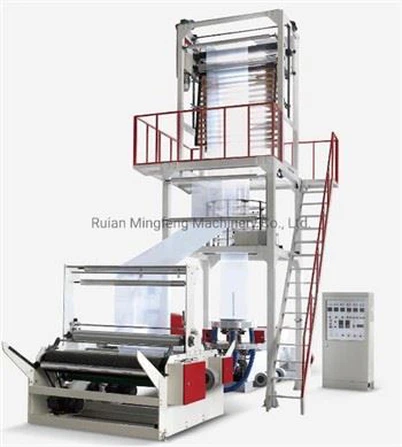

Agriculture Big Sized PE Film Blowing Machine
Agriculture Big Sized PE Film Blowing Machine Product Information This advanced PE film blowing machine for agriculture is designed to create large-sized plastic films, including OPP, PE, PP, and CPP film, with an adhesive film at the inlet and sealing on both sides. It is capable of producing...
Description
Agriculture Big Sized PE Film Blowing Machine
Product Information
This advanced PE film blowing machine for agriculture is designed to create large-sized plastic films, including OPP, PE, PP, and CPP film, with an adhesive film at the inlet and sealing on both sides. It is capable of producing high and low pressure polyethylene, making it a valuable asset for producing a variety of laminated and packaging films, including agricultural covering film, greenhouse film, plastic bags, and textile and clothing bags. The machine is highly efficient and ideal for creating high-quality packaging materials for a wide range of applications.
Features
The agriculture big sized PE film blowing machine features a frequency conversion motor as its main motor. This motor not only enhances the stability of speed regulation but also saves a significant 30% of electricity. The machine's screw and barrel are constructed using 38 chrome molybdenum aluminum treated with nitrogen, ensuring durability and efficient performance. Moreover, the traction frame of this machine is designed in a lifting type, allowing it to achieve optimal cooling effects regardless of the film size.
About us
We are a reputable manufacturer based in China that specializes in producing and distributing various kinds of Film Blowing Machines. Our top priority is to ensure customer satisfaction by providing quality products and customized solutions tailored to meet specific requirements. As a committed Film Blowing Machine manufacturer, we welcome customers from every part of the world to connect with us. Should you have any questions or wish to learn more about our products, feel free to get in touch, and we guarantee to respond promptly. Our response time is typically within 24 hours. So, contact us today for more information about our products and services, and let us be your trusted partner in business.
Optional Device:
1.Auto loader
2. Film surface treater (corona treatment )
3. Rotary die head
4. Air compressor
5. Mechanics screen changer
6. Back to Back Double winder
Equipment Parameter:
Model | SJ-A45 | SJ-A50 | SJ-A55 | SJ-A60 | SJ-A65 |
Suitable material | HDPE,LDPE,LLDPE | ||||
Reduced diameter of film(mm) | 100-500 | 300-600 | 400-800 | 500-1000 | 600-1200 |
Film thickness of (mm) | HD:0.009-0.05 LD:0.02-0.15 | ||||
Max.output(kg/h) | HD35 | HD 40 | HD 50 | HD 55 | HD60 |
Extruder | |||||
Screw diameter | 45 | 50 | 55 | 60 | 65 |
Screw L/D | 28:1/30:1 | ||||
Screw material | Sacm-645/38 crmoala | ||||
Cylinder material | Sacm-645/38 crmoala | ||||
Cylinder cooling(w) | 180*2 | 250*2 | 370*2 | 370*2 | 550*3 |
Main motor(kw) | 11 | 15 | 18.5 | 22 | 22 |
Cylinder temperature control | 3 | 3 | 3 | 3 | 3 |
Average power consume(kw) | 10 | 12 | 18 | 25 | 30 |
Type of die | |||||
Die size(mm) | HD60 LD100 | HD80 LD120 | HD80 LD180 | HD100 LD200 | HD100 LD220 |
Temperature control | 3 | 3 | 3 | 3 | 3 |
Air ring | 1 | 1 | 1 | 1 | 1 |
Air blower power (kw) | 1.5 | 2.2 | 3 | 3 | 4 |
Center steady stick | 1 | 1 | 1 | 1 | 1 |
Take up unit | |||||
Roller width(mm) | 160*650 | 160*850 | 165*1100 | 165*1200 | 165*1400 |
Take-up speed(m/min) | 10-100 | 10-100 | 10-100 | 10-100 | |
Take-up motor(2.2) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
Winding Unit | |||||
Type | Surface friction type | ||||
Winding motor(N.m) | 10 | 10 | 10 | 10 | 10 |
Winding speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 |
Voltage | 380V,50HZ,3PHASE | ||||
Outline diameter | 5000x1800x4200 | 5500x2200x4500 | 5500x2500x5200 | 5000x2400x4200 | 5500x2500x5200 |
Weight(kg) | 2000 | 2200 | 2500 | 2800 | 3000 |
Optional equipment | 1.Auto loader 2.Film surface treater 3.Rotary die head 4 .Air compressor 5.Mechanics screen changer 6.Double wind | ||||
Machine Details:
Certification:
Packaging & Shipping:
FAQ:
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
